Featured Products
Helps retain heat inside the oven by controlling density roll-out; Stabilizes process temperatures and provides better control. Reduces natural gas usage up to 10% per oven door; Paybacks 6 months-1 year per door. Winner of 2024 US Department of Energy Innovation Award. Our air curtain is a low velocity, high volume density based air seal. It has been successfully used even on the entry door of powder paint cure ovens.
Save time and money with our air curtain kits. Kits include two parallel runs of slotted ducts with adjustable air deflectors, elbows and a blower plenum needed to build air curtains. Connect with standard duct and your blower, and you’re ready to go.
The kit contains 6-inch, 5 foot slotted duct, 4 foot slot (Qty 4); 6-inch, 2 foot slotted duct, 20 inch slot (Qty 6); Plenum, 14x8x48; 6-inch Elbows (Qty 8); and Vestibule deflectors. Installation instructions are included. Individual parts can be purchased separately.
Terms and conditions apply. See Legal Terms and Conditions at bottom of this page.

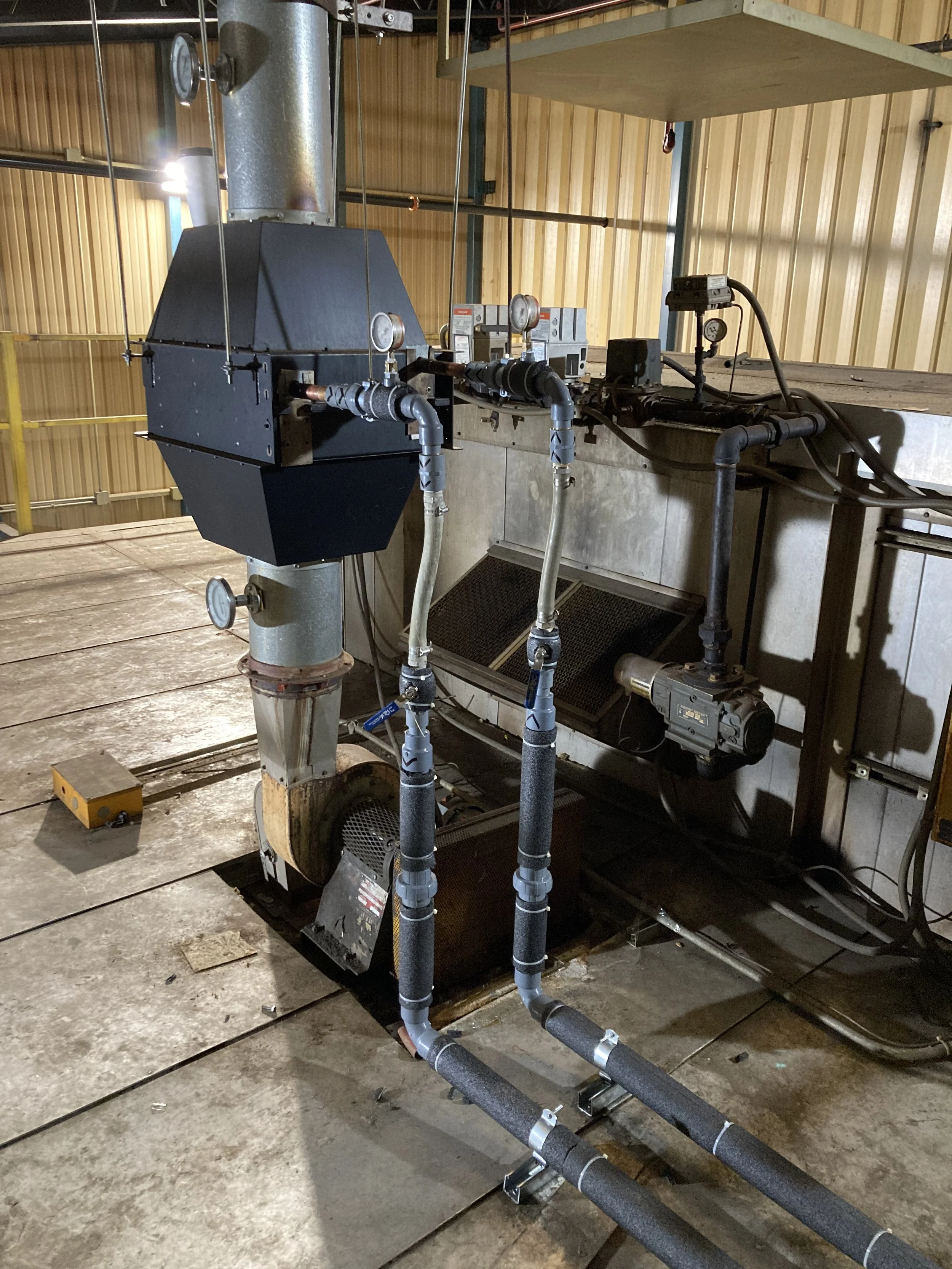

Recover the heat that you’ve already paid for with our stack economizers. Designed for cost effective waste heat recovery on smaller exhaust stacks in manufacturing facilities of all types. Save natural gas use while reducing emissions.

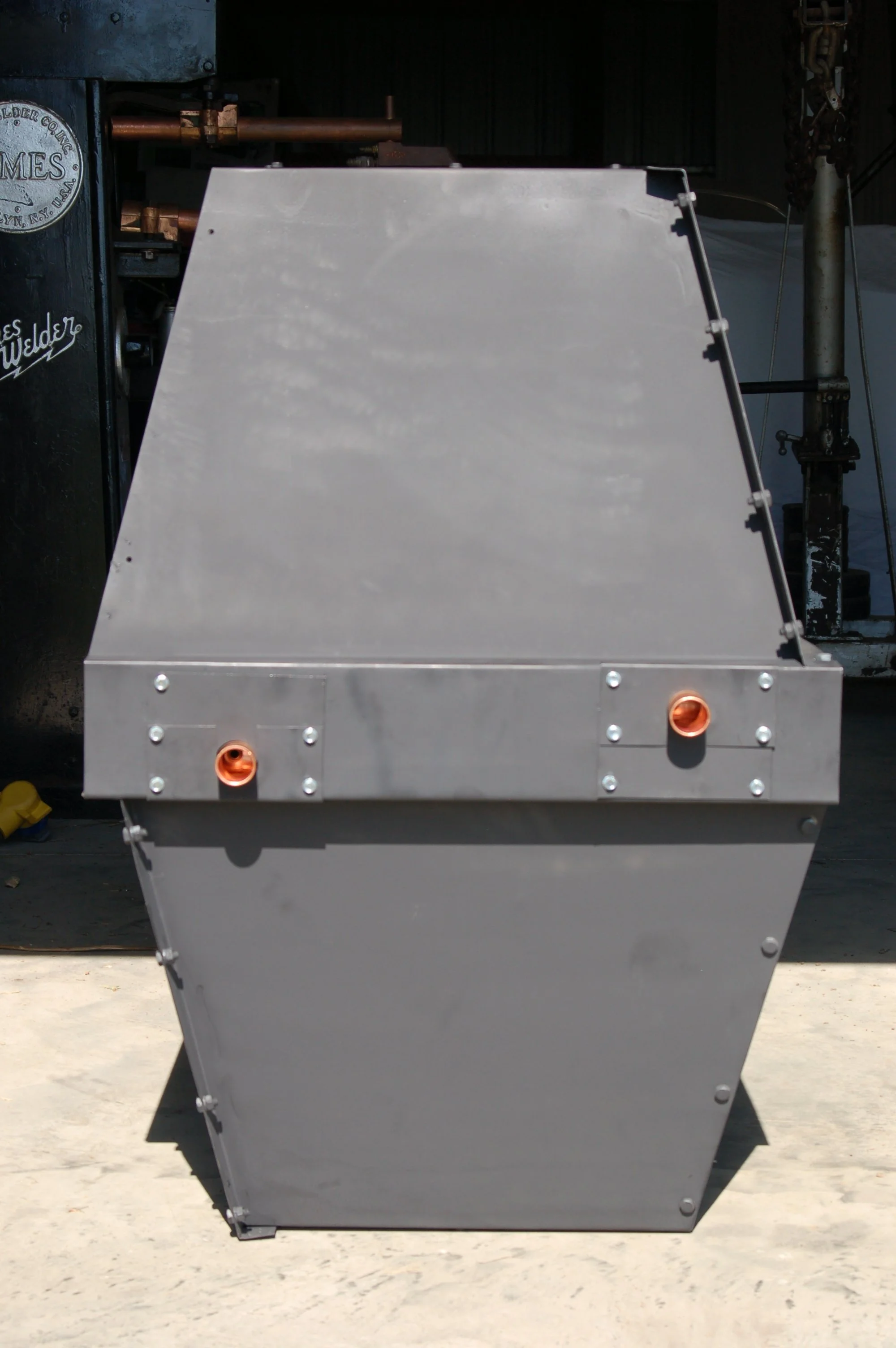

Our proven stack economizer consists of the housing and a removeable heat exchanger. The heat exchanger can be changed out without removing the entire economizer, greatly simplifying maintenance. Side panels on the housing are removeable, allowing inspection and cleaning without removing the economizer.
Capacities of this 24×24 economizer are 3000 ACFM at 400 degrees F maximum; 200,000 btu/hour max heat transfer, 5 inch WC max gas side pressure, 75 psi max liquid side pressure at 20 gpm.
Base economizer is carbon steel housing with aluminum fin/copper pipe heat exchanger. Carbon steel housing painted with high-temperature paint. Base price does not include insulation.
All aluminum housing is available for wet exhausts. Stainless steel heat exchangers are available. Aluminum housing is unpainted. Contact us directly for these options.
Terms and conditions apply. See Legal Terms and Conditions at bottom of this page.
Recover the heat that you’ve already paid for with our stack economizers. Designed for cost effective waste heat recovery on smaller exhaust stacks in manufacturing facilities of all types. Save natural gas use while reducing emissions.
Our proven stack economizer consists of the housing and a removeable heat exchanger. The heat exchanger can be changed out without removing the entire economizer, greatly simplifying maintenance. Side panels on the housing are removeable, allowing inspection and cleaning without removing the economizer.
Capacities of this 20×20 economizer are 2200 ACFM at 400 degrees F maximum; 145,000 btu/hour max heat transfer, 5 inch WC max gas side pressure, 75 psi max liquid side pressure at 15 gpm.
Base economizer is carbon steel housing with aluminum fin/copper pipe heat exchanger. Carbon steel housing painted with high-temperature paint. Base price does not include insulation.
All aluminum housing is available for wet exhausts. Stainless steel heat exchangers are available. Aluminum housing is unpainted. Contact us directly for these options.
Terms and conditions apply. See Legal Terms and Conditions at bottom of this page.
Why We Do What We Do
Energy efficiency has been made too difficult and too expensive for too long. We are changing that by throwing out the old playbook and starting over.
JPM is dedicated to providing real-world, cost effective solutions to industry to make your facilities more efficient and save you money in the process.
